Fixed Mount Barcode Scanners
Industrial-grade fixed-mount barcode scanners for assembly lines, kiosks, POS systems, and automated self-service terminals.
Key Features
- Durable housing for industrial use
- All major 1D and 2D symbologies
- Interfaces: USB, RS232, TTL
- Physical trigger button
- CE, FCC, RoHS certified
- Optional OCR/MRZ reading
- For kiosks and self-service
- Wide operating temp range
Technical Specifications
| Scan Type | 2D Imager (CMOS) |
| Resolution | 640×480 / 1280×800 |
| Interfaces | USB / RS232 / TTL |
| Read Distance | 0 – 300mm |
| Frame Rate | 60 – 120 fps |
| Symbologies | QR, DM, PDF417, Code128, EAN/UPC |
| Temp | -20C to +50C |
| Cert | CE / FCC / RoHS |
All Fixed Mount Barcode Scanners
Browse our complete range of 4 models.

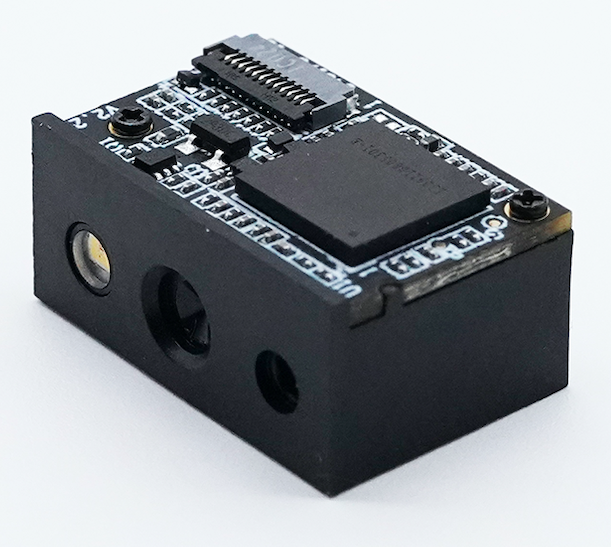

TF530
Key Features
- Compact embedded scanner for kiosks, POS, and desktop applications
- Physical trigger button for OEM integration and standalone use
- Fast decoding of printed and mobile-screen barcodes
Technical Specifications
| Sensor | CMOS 640*480 |
| Frame Rate | 120 fps |
| Interface | USB-KBW/USB Serial Port/RS232/TTL-3.3V/TTL-5V |
| Code | 1D/2D |
| Aimer | Laser diode 650nm |

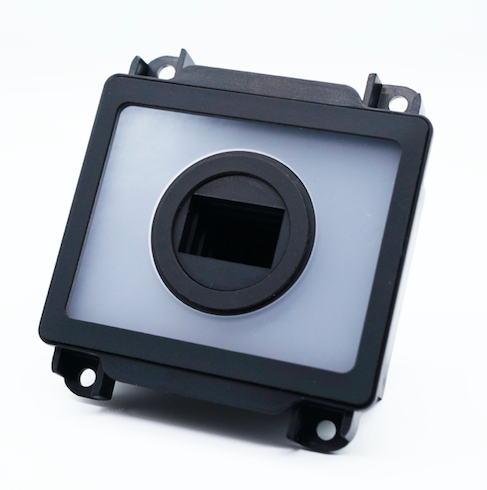

TF531
Key Features
- 1MP sensor for dense barcode and document reading
- Optional MRZ-OCR for passports, ID cards.
- Physical trigger button for manual capture and identity verification
Technical Specifications
| Sensor | CMOS 1280*800 |
| Frame Rate | 60 fps |
| Interface | USB-KBW/USB Serial Port/RS232/TTL-3.3V/TTL-5V |
| Code | 1D/2D |
| Aimer | Laser diode 650nm |

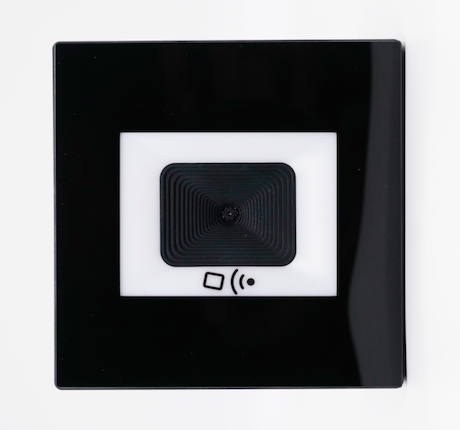

TF540
Key Features
- Durable aluminum housing for better protection than plastic enclosure
- Fixed-mount design for kiosks, POS, and self-service terminals
- Stable 1D/2D barcode reading for daily commercial applications
Technical Specifications
| Sensor | CMOS 640*480 Pixels |
| Frame Rate | 120 fps |
| Interface | USB-KBW/USB Serial Port/RS232/TTL |
| Code | 1D/2D |
| Aimer | Red LED (625±10nm) |

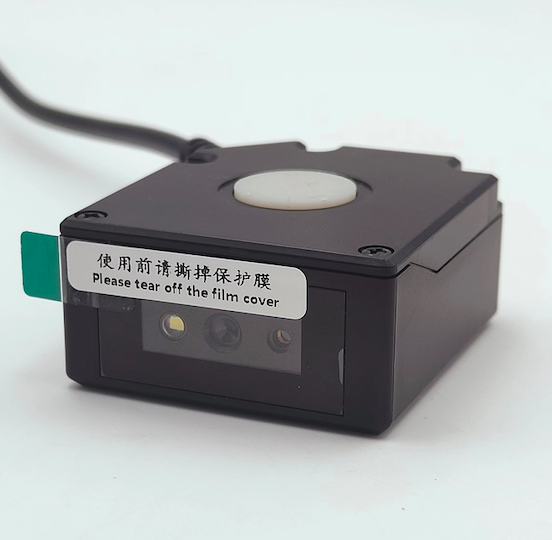

TF540H
Key Features
- 1MP sensor with durable aluminum housing for higher decoding accuracy
- Optional OCR/MRZ reading for ID cards and passports
- Suitable for kiosks, service counters, and identity verification terminals
Technical Specifications
| Sensor | |
| Frame Rate | 60 fps |
| Interface | USB-KBW/USB Serial Port/RS232/TTL |
| Code | 1D/2D |
| Aimer | Red LED (625±10nm) |
