NFC QR Combined Scanners
Dual-technology scanners combining barcode/QR reading with 13.56MHz NFC card support for access control, payments, and identity verification.
Key Features
- Barcode/QR + 13.56MHz NFC reading
- All major 1D and 2D symbologies
- Interfaces: USB, RS232, TTL, Wiegand
- High-speed up to 120 fps
- CE, FCC, RoHS certified
- Wide-voltage design
- For access control and payments
- Compact design
Technical Specifications
| Scan Type | 2D Imager + 13.56MHz NFC |
| Resolution | 640×480 |
| Interfaces | USB / RS232 / TTL / Wiegand |
| Read Distance | 0 – 300mm |
| NFC | 13.56 MHz, ISO 14443A |
| Symbologies | QR, DM, PDF417, Code128, EAN/UPC |
| Temp | -20C to +50C |
| Cert | CE / FCC / RoHS |
All NFC QR Combined Scanners
Browse our complete range of 4 models.

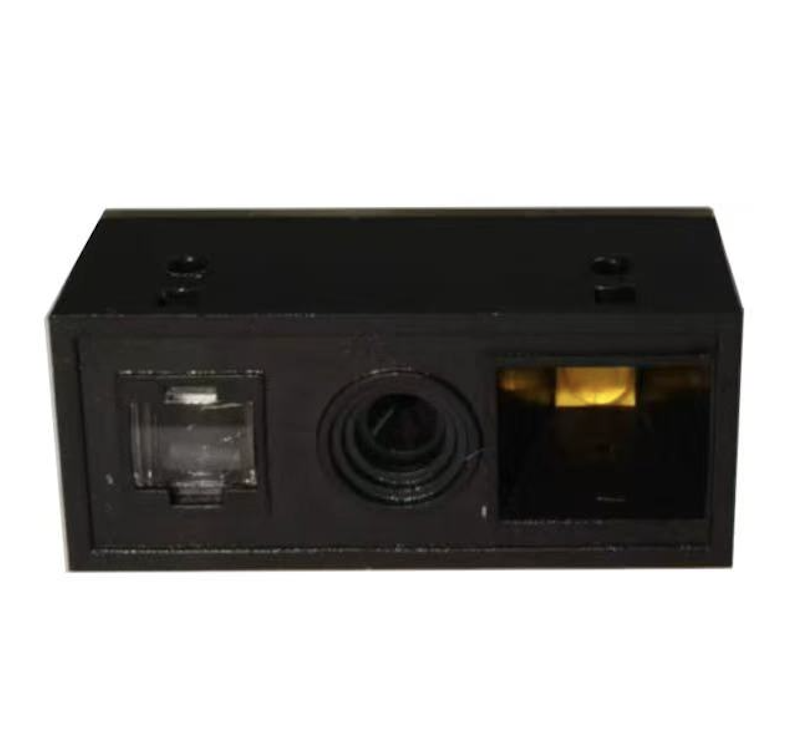

E230N
Key Features
- Barcode + 13.56 MHz NFC reading in one compact module
- Slim 8.3 mm height for space-limited terminal integration
- Cost-effective solution for access control, kiosks, and smart devices
Technical Specifications
| Sensor | CMOS 640*480Pixels |
| Frame Rate | 60 fps |
| Interface | USB-KBW/USB Serial Port/TTL |
| Code | 1D&2D//13.56Mhz NFC Card |
| Size | 54.6×33.4×8.3（W×H×D） |

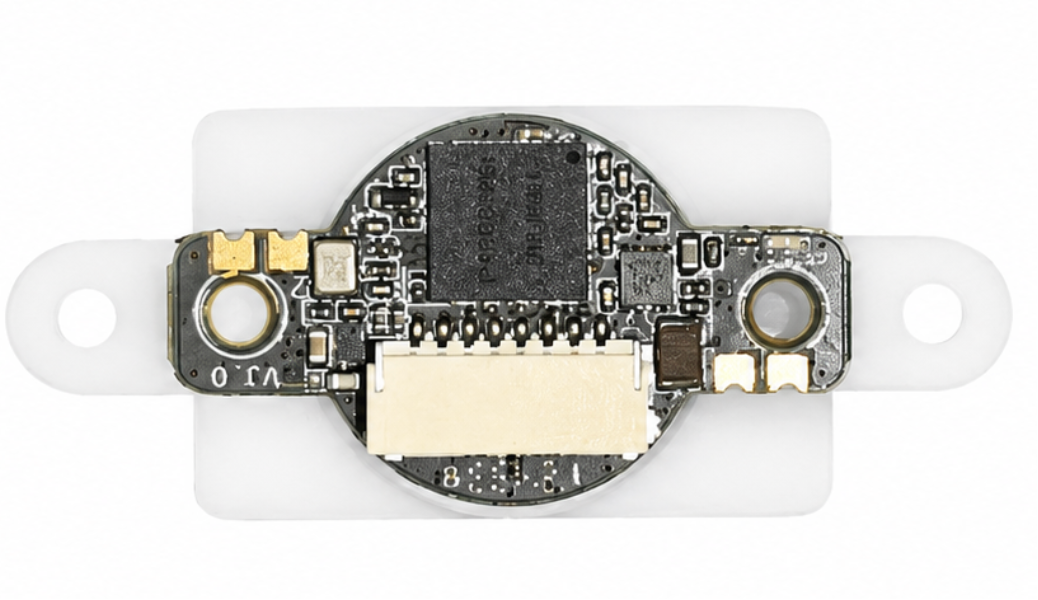

E200N
Key Features
- Barcode + 13.56 MHz NFC reading in one fixed-mount module
- Rich interfaces including USB, RS232, TTL, Wiegand, and RS485 for flexible integration
- Wide-voltage support for different access control, kiosk, and smart terminal applications
Technical Specifications
| Sensor | CMOS 640*480 Pixels |
| Frame Rate | 120 FPS |
| Interface | USB-KBW/USB V-COM/RS232/RS485/TTL-3.3V/TTL-5V/Wiegand |
| Code | 1D/2D/13.56Mhz NFC Card |

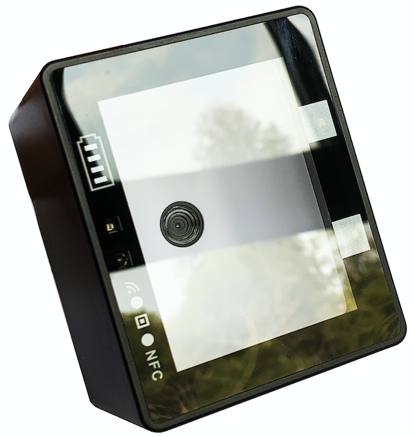

E200N86
Key Features
- E200N upgraded with 86-type wall panel for standard wall-box installation
- Large front panel helps protect the scanning window and improve water resistance
- Barcode + 13.56 MHz NFC reading with rich interface options
Technical Specifications
| Sensor | CMOS 640*480 Pixels |
| Frame Rate | 120 FPS |
| Interface | USB-KBW/USB V-COM/RS232/RS485/TTL-3.3V/TTL-5V/Wiegand |
| Code | 1D/2D/13.56Mhz NFC Card |
E260N
Key Features
- NFC-enabled version of E260, integrating barcode scanning and 13.56 MHz NFC card reading in one module
Technical Specifications
| Sensor | CMOS 640*480 Pixels |
| Frame Rate | 120 FPS |
| Interface | USB-KBW/USB V-COM/RS232 |
| Code | 1D/2D/13.56Mhz NFC Card |
